AS180A-500C
Fully-Auto Chain Type Horizontal Stretch Wrapper
Fully-Auto Working Without Operator
Photo Sensor Controls Wrapping Start and Stop
Control by Touch Panel (Pro-Face) With Mitsubishi PLC
Complete Function With 10 Sets Memory Program
Auto Film Cutting and Clamping
With Heavy Duty Chain Conveyor, Adjustable Speed
Higher Efficiency & Lower Cost by Using Wooden Stick
AS180A-500C Fully-Auto Chain Type Horizontal Stretch Wrapper
newWindow
newWindow
newWindow
newWindow





Feature



.  AC motor with inverter driven rotation unit.
.  Numbers of wrapping adjustable from 0 – 9.

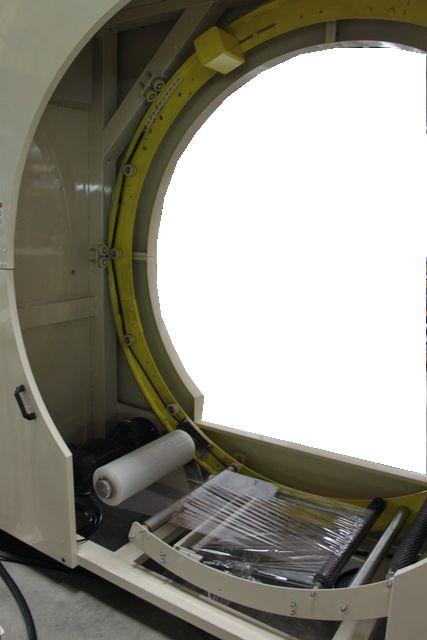

.  Mechanical break roller to adjust film tension.
.  Adjustable rotation and conveyor speed.

.  Three wrapping modes – continuously/single/middle reinforce.

.  Photo sensor controls wrapping start and stop.

.  Control by touch panel (Pro-Face) with Mitsubishi PLC.

.  Complete function with 10 sets memory program.
.  Auto film cutting and clamping.

.  With front heavy duty chain conveyor, speed is adjustable.

.  By using wooden stick instead of pallet for increasing the efficiency and reducing the cost.
.  Options:

    1.  Pneumatic Top Pressure Roller

    2.  Inline with Strapping Machine

    3.  Customized Front and Rear Conveyors

    4.  6 Sides Wrapping With Plastic Bag in Front and Rear Sides

    5.  Short Object Wrapping









AS180A-500C Fully Auto Horizontal Stretch Wrapper

+

Fully Auto Strapping Machine Inline Operation





SPECIFICATION TABLE OF AS WRAPPER SERIES





AS SERIES FULLY-AUTO HORIZONTAL WRAPPER APPLIED FILM





Film Spec. AS-40A AS-70A AS-140A AS-180A  AS-250A
125MM (W) x ∮200MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 S.T.D S.T.D - - -
300MM (W) x ∮250MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 - S.T.D S.T.D S.T.D S.T.D



● Option: Film Spec. 500MM (W) x ∮250MM (Max. Dia.) Inner Core: 76MM(3")





WRAPPING SPEED OF AS SERIES FULLY-AUTO HORIZONTAL WRAPPER

  Max. Rotation Speed Max. Conveyor Speed Conveyor Belt Width Min. Wrapping Length
Film: 125mm(Width)
AS40A-125 90RPM 10M/Min 250mm 400mm
AS70A-125 60RPM 7M/Min 400mm 400mm
Film: 300mm(Width)
AS70A-300 60RPM 18M/Min 400mm 1,000mm
AS140A-300 40RPM 12M/Min 1,000mm 1,000mm
AS180A-300 30RPM 9M/Min 1,200mm 1,000mm
AS250A-300 25RPM 7M/Min Custom Spec. Custom Spec.



Machine Power:



  1. 1 Phase , 110V / 220V , 50 / 60Hz
  2. 3 Phase , 220V / 380V , 50 / 60Hz





Options:





  • Pneumatic Top Pressure Roller
  • Inline with Strapping Machine
  • Power Roller Conveyor
  • 6 Sides Wrapping With Plastic Bag in Front and Rear Sides
  • Short Object Wrapping
  • Special Chain Conveyor for Pallet Wrapping
