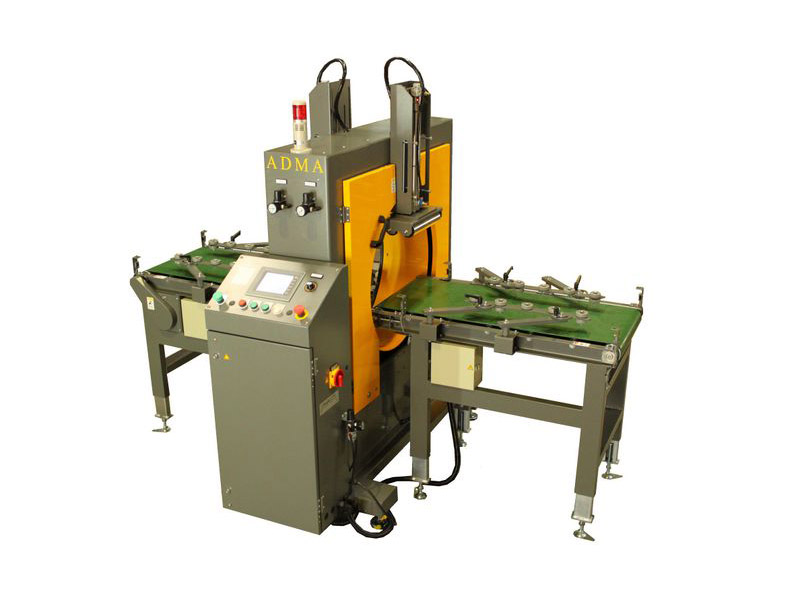

AS70A-125
Fully-Auto Horizontal Stretch Wrapper
Fully-Auto Working Without Operator
Photo Sensor Controls Wrapping Start and Stop
Control by Touch Panel (Pro-Face) With Mitsubishi PLC
Complete Function With 10 Sets Memory Program
Auto Film Cutting and Clamping
With Front And Rear Belt Conveyor, Adjustable Speed
Option: Stretch And Strap Packaging At The Same Time
newWindow
newWindow
newWindow
newWindow







Feature



. AC motor with inverter driven rotation unit.
. Numbers of wrapping adjustable from 0 – 9.
. Mechanical break roller to adjust film tension.
. Adjustable rotation and conveyor speed.

. Three wrapping modes – continuously/single/middle reinforce.

. Photo sensor controls wrapping start and stop.

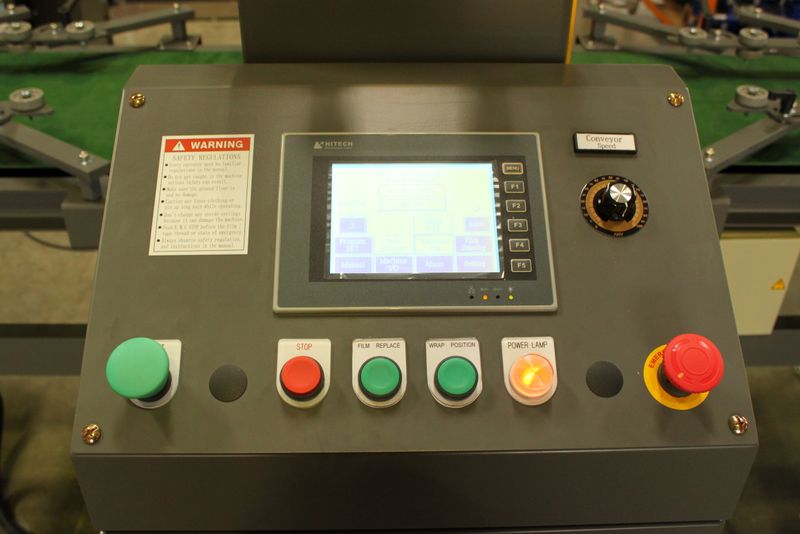

. Control by touch panel (Pro-Face) with Mitsubishi PLC.

. Complete function with 10 sets memory program.
. Auto film cutting and clamping.

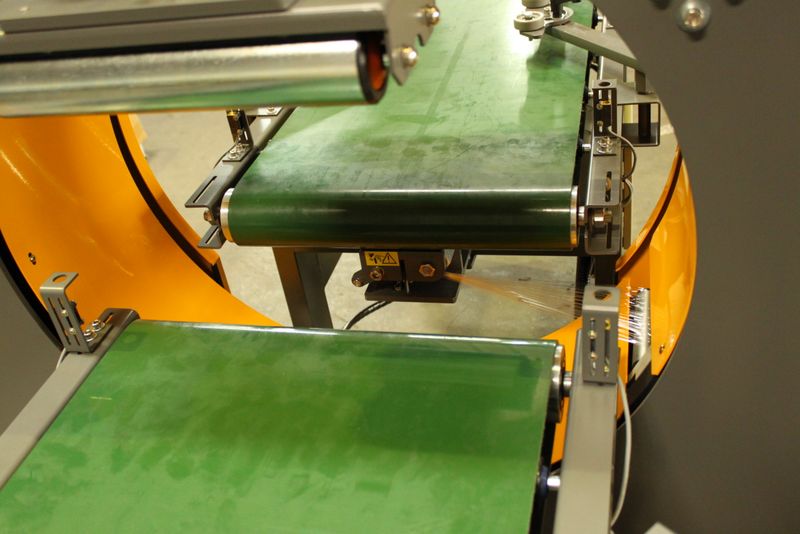

. With front and rear belt conveyor, speed can be adjusted.
. Options:

   1. Pneumatic Top Pressure Roller

   2. Inline with Strapping Machine

   3. Power Roller Conveyor

   4. 6 Sides Wrapping With Plastic Bag in Front and Rear Sides

   5. Short Object Wrapping

   6. Special Chain Conveyor for Pallet Wrapping











AS70A-125  Fully Auto Horizontal Stretch Wrapper







SPECIFICATION TABLE OF AS WRAPPER SERIES







AS SERIES FULLY-AUTO HORIZONTAL WRAPPER APPLIED FILM







Film Spec. AS-40A AS-70A AS-140A AS-180A  AS-250A
125MM (W) x ∮200MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 S.T.D S.T.D - - -
300MM (W) x ∮250MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 - S.T.D S.T.D S.T.D S.T.D



● Option: Film Spec. 500MM (W) x ∮250MM (Max. Dia.) Inner Core: 76MM(3")





WRAPPING SPEED OF AS SERIES FULLY-AUTO HORIZONTAL WRAPPER



  Max. Rotation Speed Max. Conveyor Speed Conveyor Belt Width Min. Wrapping Length
Film: 125mm(Width)
AS40A-125 90RPM 10M/Min 250mm 400mm
AS70A-125 60RPM 7M/Min 400mm 400mm
Film: 300mm(Width)
AS70A-300 60RPM 18M/Min 400mm 1,000mm
AS140A-300 40RPM 12M/Min 1,000mm 1,000mm
AS180A-300 30RPM 9M/Min 1,200mm 1,000mm
AS250A-300 25RPM 7M/Min Custom Spec. Custom Spec.



Machine Power:



  1. 1 Phase , 110V / 220V , 50 / 60Hz
  2. 3 Phase , 220V / 380V , 50 / 60Hz





Options:

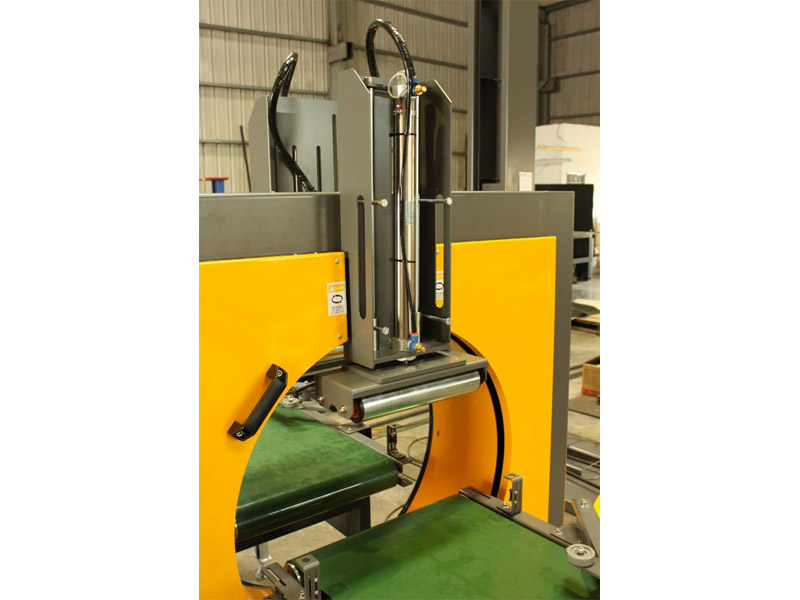

  • Pneumatic Top Pressure Roller
  • Inline with Strapping Machine
  • Power Roller Conveyor
  • 6 Sides Wrapping With Plastic Bag in Front and Rear Sides
  • Short Object Wrapping
  • Special Chain Conveyor for Pallet Wrapping
