ADMA - Products,Horizontal Stretch Wrapper > Semi-Auto Type,AS40S-125 Horizontal Stretch Wrapper

PRODUCT INDEX > Horizontal Stretch Wrapper > Semi-Auto Type>AS40S-125

AS40S-125

Semi-Auto Horizontal Stretch Wrapper

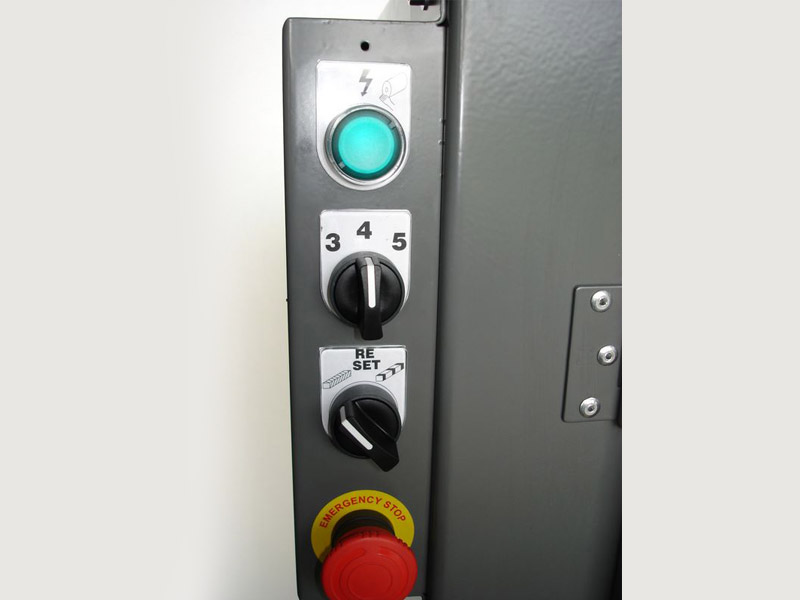

Foot-Switch Control Start & Stop
Two Wrapping Programs - Single and Double
PLC and Inverter Control with Adjustable Speed

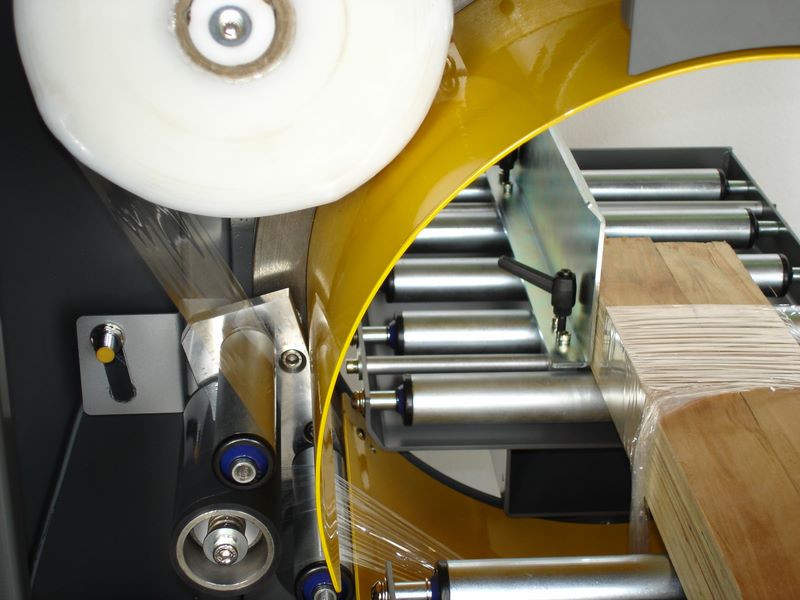

Auto Film Cutting & Clamping

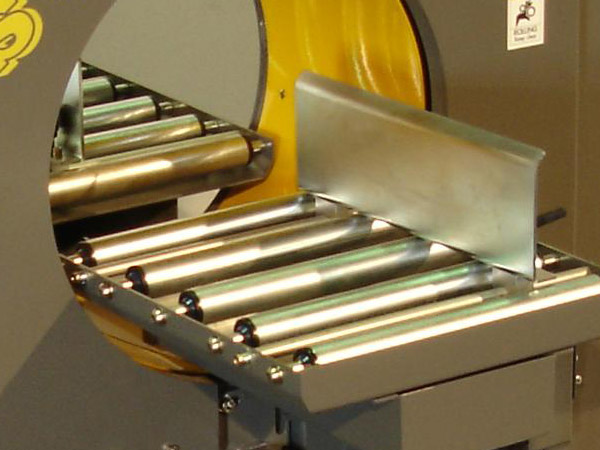

With Free Roller Conveyor

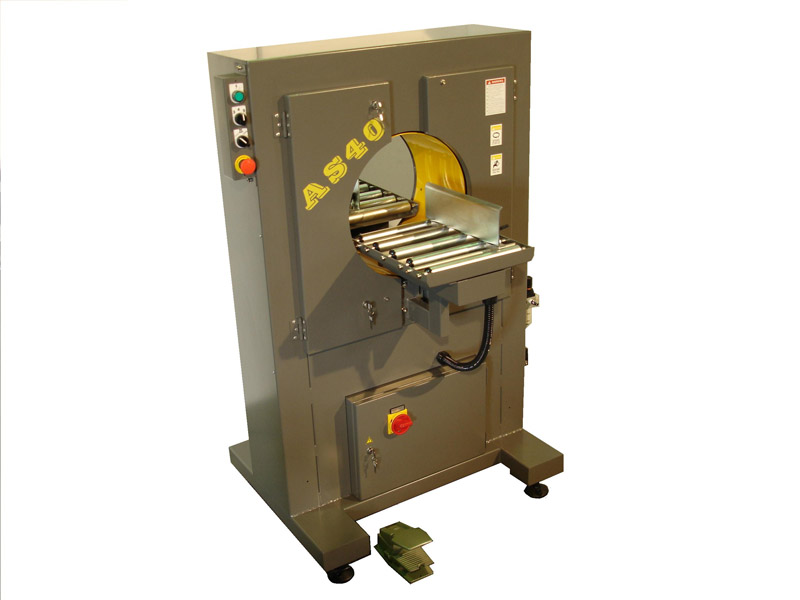

AS40S-125 Semi-Auto Horizontal Stretch Wrapper

Features

. Auto film cutting & clamping

. Belt driven rotation unit.

. Available adjustment rotating speed.

. Max. Speed: 90 RPM

. Continuous operation cycle by foot controlled.

. PLC Control

. Standard Voltage: 110V/220V, 1-Phase, 50/60Hz

. Air pressure: 5 bar

. With Free Roller Conveyor

AS40S-125 Semi-Auto Horizontal Wrapper Operation

SPECIFICATION TABLE OF AS WRAPPER SERIES

AS SERIES SEMI-AUTO HORIZONTAL WRAPPER APPLIED FILM

Film Spec.	AS-40S	AS-70S
125MM (W) x ∮200MM (Max. Dia.) Inner Core: 76MM(3") Film Thickness: 17 ~ 30 um	S.T.D	S.T.D
300MM (W) x ∮250MM (Max. Dia.) Inner Core: 76MM(3") Film Thickness: 17 ~ 30 um	-	S.T.D

● Option: Film Spec. 500MM (W) x ∮250MM (Max. Dia.) Inner Core: 76MM(3")
