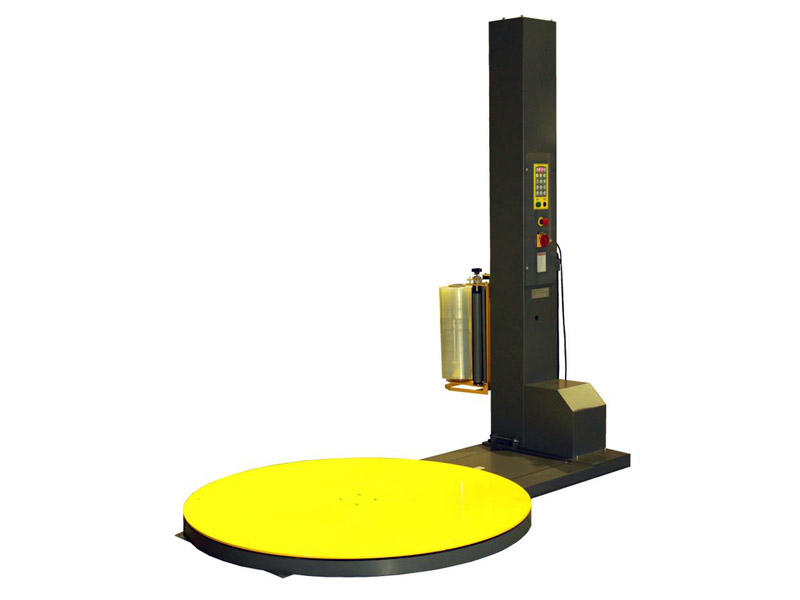

AP-150 Turntable Type

Semi-Auto Turntable Stretch Wrapper

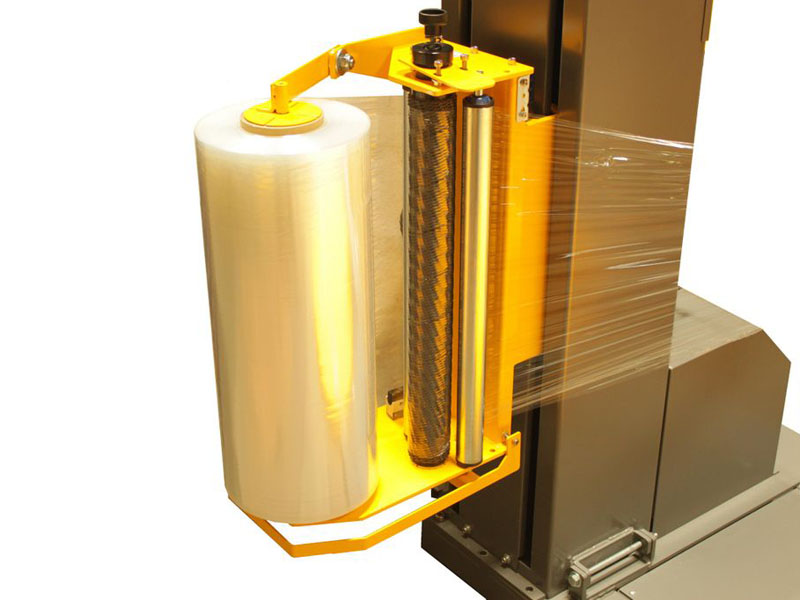

Max. 100% Mechanical Brake Stretch Ratio
Photo Sensor for Wrapping Object Height Sensing
E-Go Panel with Complete Functions
Schneider Telemecanique Inverter and Control Parts

AP-150 Semi-Auto Mechnical Brake Stretch Wrapper

Features

Adjustable film tension via mechanical brake from panel and the brake rate can reach 100%.
Adjustable automatic photocell load height detection.
Security foot guard user protection.
E-GO control panel with complete function.
Top & Bottom wrapping counter from 0~9 cycles.
Turntable speed adjustable 1~12 RPM, soft start & stop.
Turntable stops in reset position.
Turntable: chain driving.
Carriage speed adjustable from 0.5M/min ~ 6M/min.

Complete Function

Digital Panel with LED indicator for turntable/carriage speed, tension, wrapping counts and program mode.
Complete solution to satisfy different wrapping demands, includes two major wrapping programs (Single/Double Wrapping) and three auxiliary programs (Reinforce/Unstable Object & Top Sheet Wrapping)
Memory setting function.
Speed adjustment from panel for turntable and carriage.
Reset and Over Wrapping function.
Handle operation for turntable and carriage.
Start/Stop push buttons.
Large Emergency Stop button.

AP-150 Semi-Auto Mechanical Brake Stretch Wrapper Operation

AP SEMI-AUTO PALLET WRAPPER SPEC.

Machine Spec. (mm)

Model No.	AP50	AP150	AP200
Production Rate	-	Max. 30 Pallets/Hour	Max. 30 Pallets/Hour
Turntable Speed	12RPM
Turntable Dia.	1,500MM
Max. Loading	2,000KG
Max. Wrapping Height	2000MM
Film Stretch	-	Mechanical Brake Stretch	Magnetic Brake Stretch
Film Stretch Rate	-	100%	100%
Wrapping Tension	-	Digital Touch Panel Adjust	Digital Touch Panel Adjust
Electric Requirements	1￠110V/220V (50/60Hz)
Electric Requirements	0.7KW	1KW	1.5KW
Photocell Sensor	-	Standard
Operation Panel	Foot Switch	Digital Display and Touch Panel
Structure	Full Series Steel Structure
Film Spec.	500MM wide Max. Outer Dia. ￠250mm Core Dia 76mm Film Thickness 15~23 μ
Technical Data	Operation Manual
Options	Turntable Dia.: 1,650mm/1,800mm Wrapping height: 2,500mm Pneumatic Top Pressure Loading: 2,500KGS Ramp
Warranty	One Year

	A	B
Turntable 1500 Turntable 1650 Turntable 1800	2300mm 2450mm 2600mm	- -
Wrap height 2000 Wrap height 2500 Wrap height 3000	- -	2284mm 2784mm 3284mm
