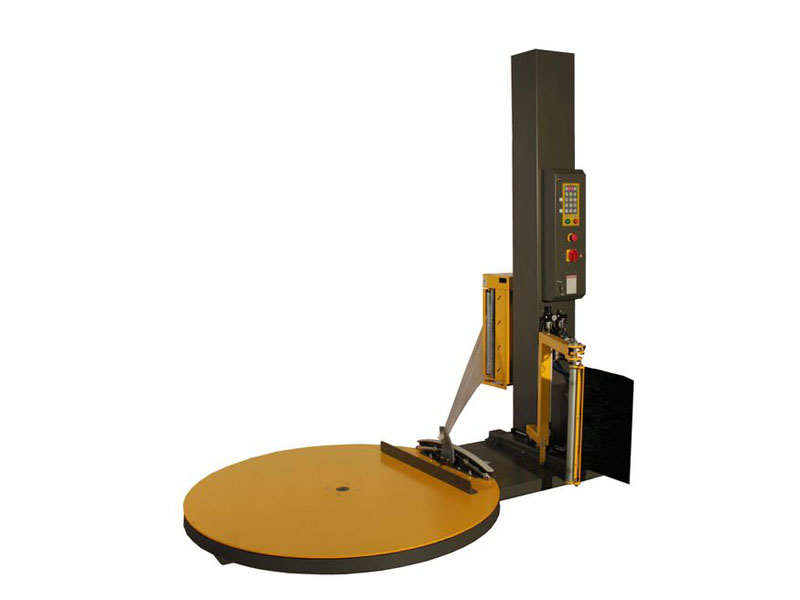

AP-360 Turntable Type

Fully-Auto Power Pre-Stretch Wrapper

Remote Control - Forklift Driver Stays on Car
Auto Film Cutting & Clamping and Brush Wiper
Max. 250% Power Pre-Stretch Ratio
Photo Sensor For Wrapping Object Height Sensing
E-Go Panel With Complete Functions
Schneider Telemecanique Inverter And Control Parts
User Friendly

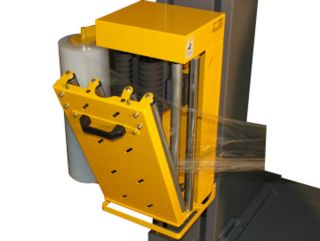

AP-360 with New Carriage

Features

Air auto film cutting & clamping built on turntable and brush wiper for saving the wrapping time. Low maintenance demand for mechanical device.
Power pre-stretch rate can reach 250% (standard is 200%).
Film tension can be adjusted from panel. The digital control system maintains the same tension for different sizes and shape of wrapping objects.
Enlarge space for easier film threading. The security door and food guard installation for operator protection.
Adjustable automatic photocell load height protection.
Security foot guard user protection.
E-GO control panel with complete function.
Micro-processor provides 8 different wrapping programs.
Top & Bottom wrapping counter from 0~9 cycles.
Turntable speed adjustable 1~12 RPM.
Inverter for soft start & stop.
Turntable stops in reset position.
Carriage speed adjustable from 0.5M/min ~ 6M/min.
Film easy install and threading design.

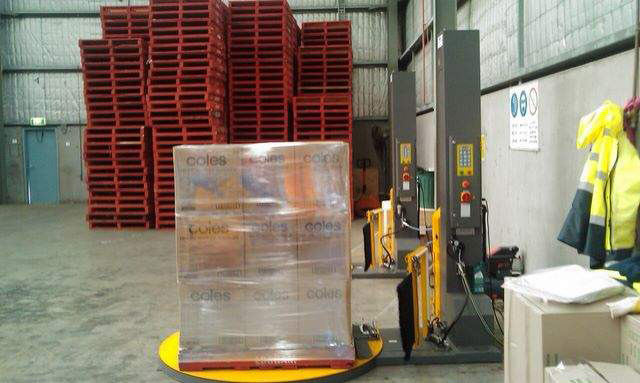

AP-360 Fully-Auto Power Pre-Stretch Wrapper Operation

AP-360 With Optional PLC Control and Top Pressure Plate

AP FULLY-AUTO PALLET WRAPPER SPEC.

Machine Spec. (mm)

Model No.	AP-260	AP-360
Production Rate	Max. 40 Pallets/Hour	Max. 40 Pallets/Hour
Turntable Dia.	1,500mm
Max. Wrapping Height	2,000mm
Max. Loading	2,000KGS
Auto Film Clamp/Cut	Standard
Remote Control	Standard
Turntable Speed	12 RPM
Film Stretch	Magnetic Brake Stretch	Power Pre-Stretch
Film Stretch Rate	100%	250% (Max.)
Wrapping Tension	Digital Touch Panel Adjust
Electric Requirements	1Phase 110 /220 V (50/60Hz)
	1KW	1.5KW
Photo Sensor	Standard
Operation Panel	Digital Display and Touch Panel
Structure	Full Series Steel Structure
Film Spec.	500mm (W) Max. Outer Dia. ￠250mm Core Dia. 76mm Film Thickness 15~23 μ
Technical Data	Operation Manual
Options	Turntable Dia.: 1,650mm/1,800mm Wrapping Height: 2,500mm Pneumatic Top Pressure Ramp
Warranty	One Year

	A	B
Turntable 1500 Turntable 1650 Turntable 1800	2300mm 2450mm 2600mm	- -
Wrap height 2000 Wrap height 2500 Wrap height 3000	- -	2284mm 2784mm 3284mm
